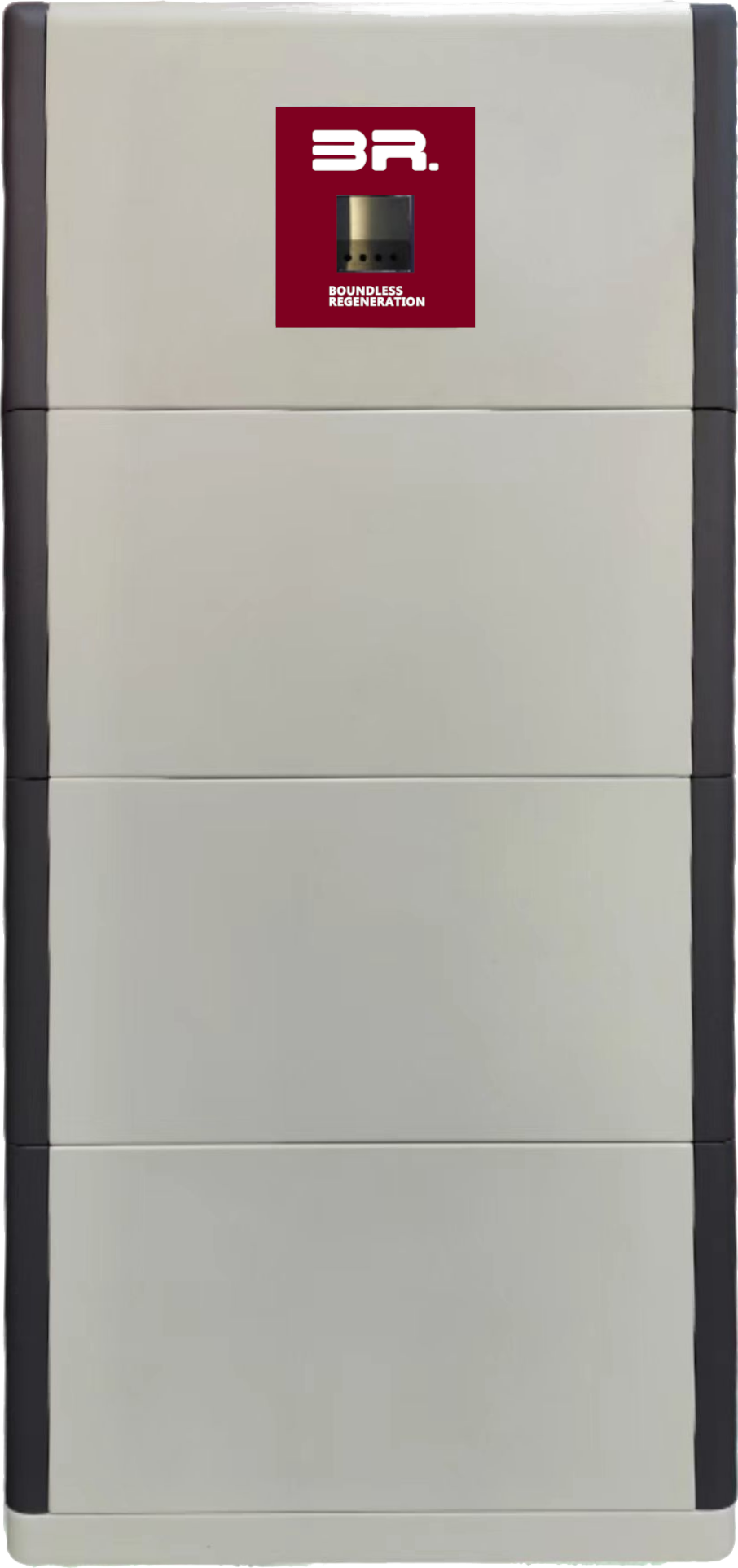

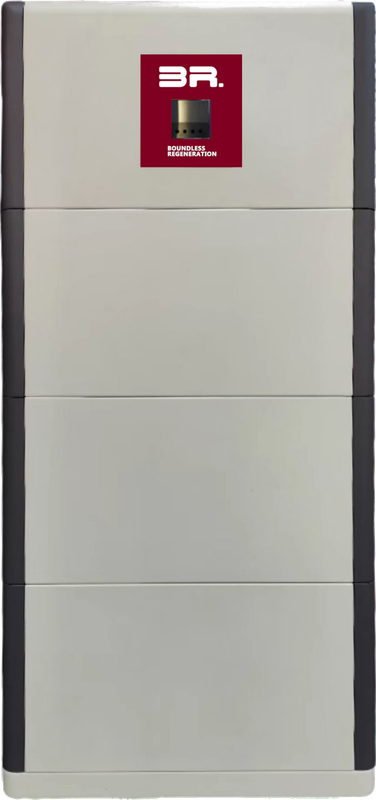

Stackable Home Energy Storage
A stackable energy storage system is a modular power solution that allows flexible expansion of capacity and output by adding battery modules.
- Nominal Voltage(V)51.2
- Battery Capacity(Ah)314
- Nominal Energy(kWh)16.07
- Charging Voltage(V)58.4
- Net Weight (Approx.)195
- Dimensions (mm)680*180*1460
- Working Temperature(°C)charge: 0~45°C; discharge: -20~60°C
- CommunicationRS485/USB
- Cycle Life>3000
- IP GradeIP21

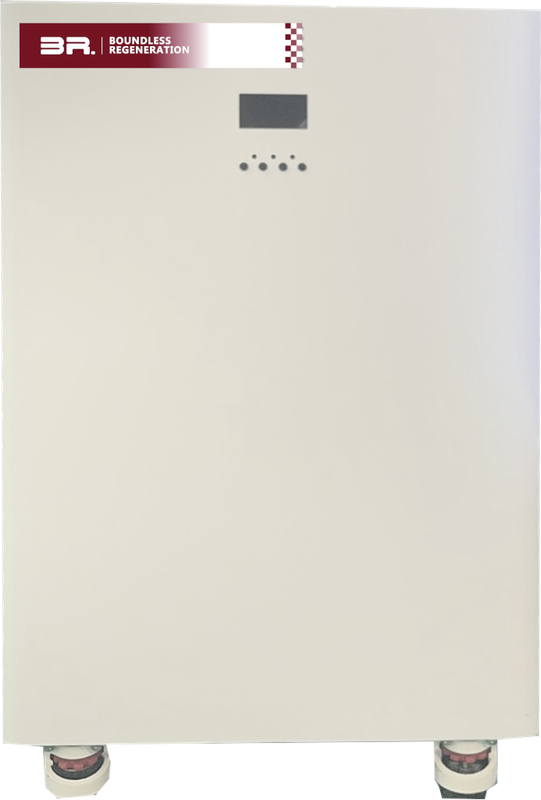

Integrated Home Energy Storage
An integrated energy storage system combines multiple components into a single unit, providing a compact and efficient solution for residential energy management.
- Nominal Voltage(V)51.2
- Battery Capacity(Ah)100
- Nominal Energy(kWh)5.12
- Charging Voltage(V)58.4
- Net Weight (Approx.)60
- Dimensions (mm)490*230*770
- Working Temperature(°C)charge: 0~45°C; discharge: -20~60°C
- CommunicationRS485/USB
- Cycle Life>3000
- IP GradeIP21

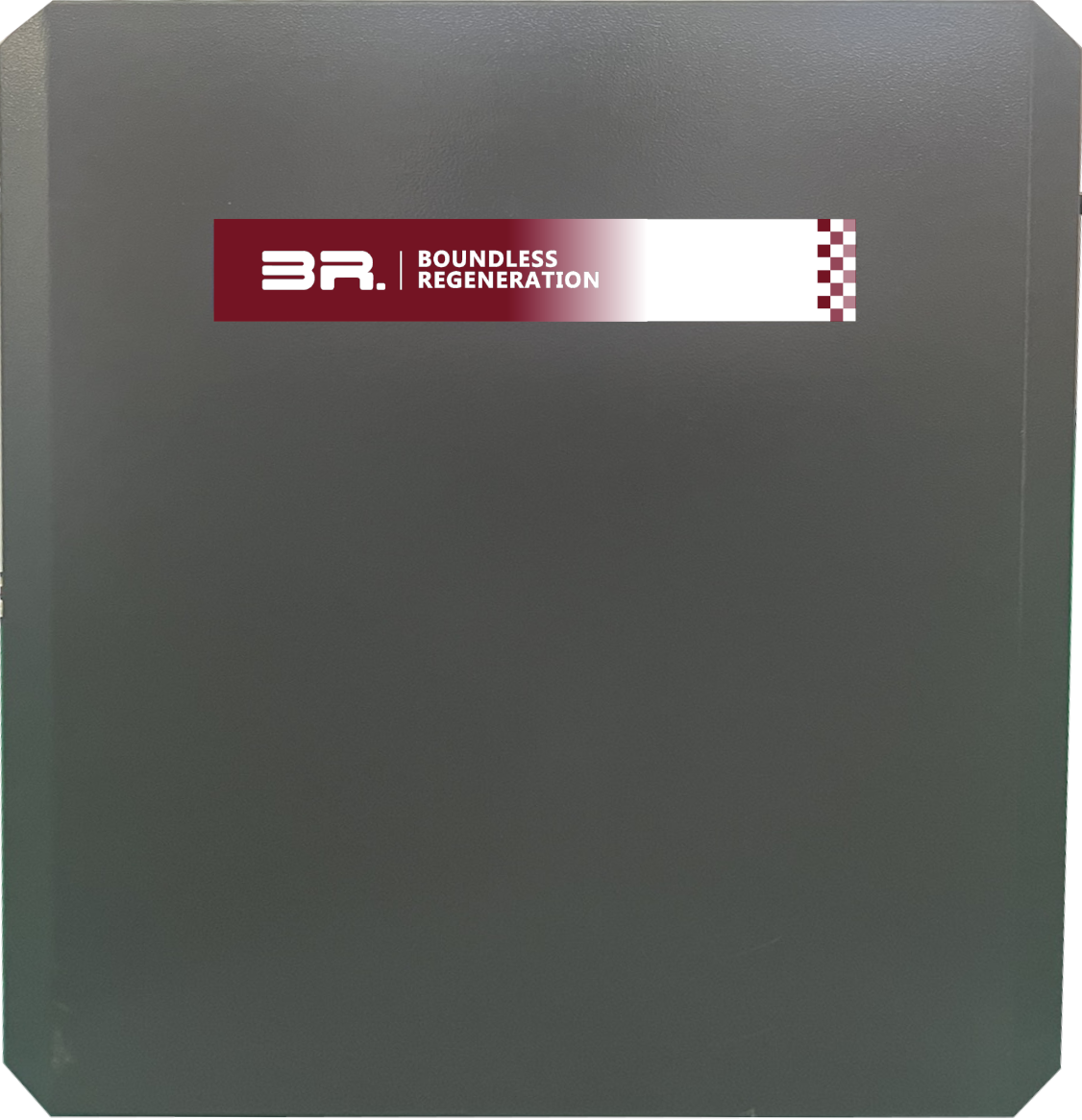

Wall-Mounted Home Energy Storage
A wall-mounted energy storage system is designed to be installed on walls, saving floor space and providing easy access for maintenance and monitoring.
- Nominal Voltage(V)51.2
- Battery Capacity(Ah)102
- Nominal Energy(kWh)5.12
- Charging Voltage(V)58.4
- Net Weight (Approx.)60
- Dimensions (mm)430*150*530
- Working Temperature(°C)charge: 0~45°C; discharge: -20~60°C
- CommunicationRS485/USB
- Cycle Life>3000
- IP GradeIP21

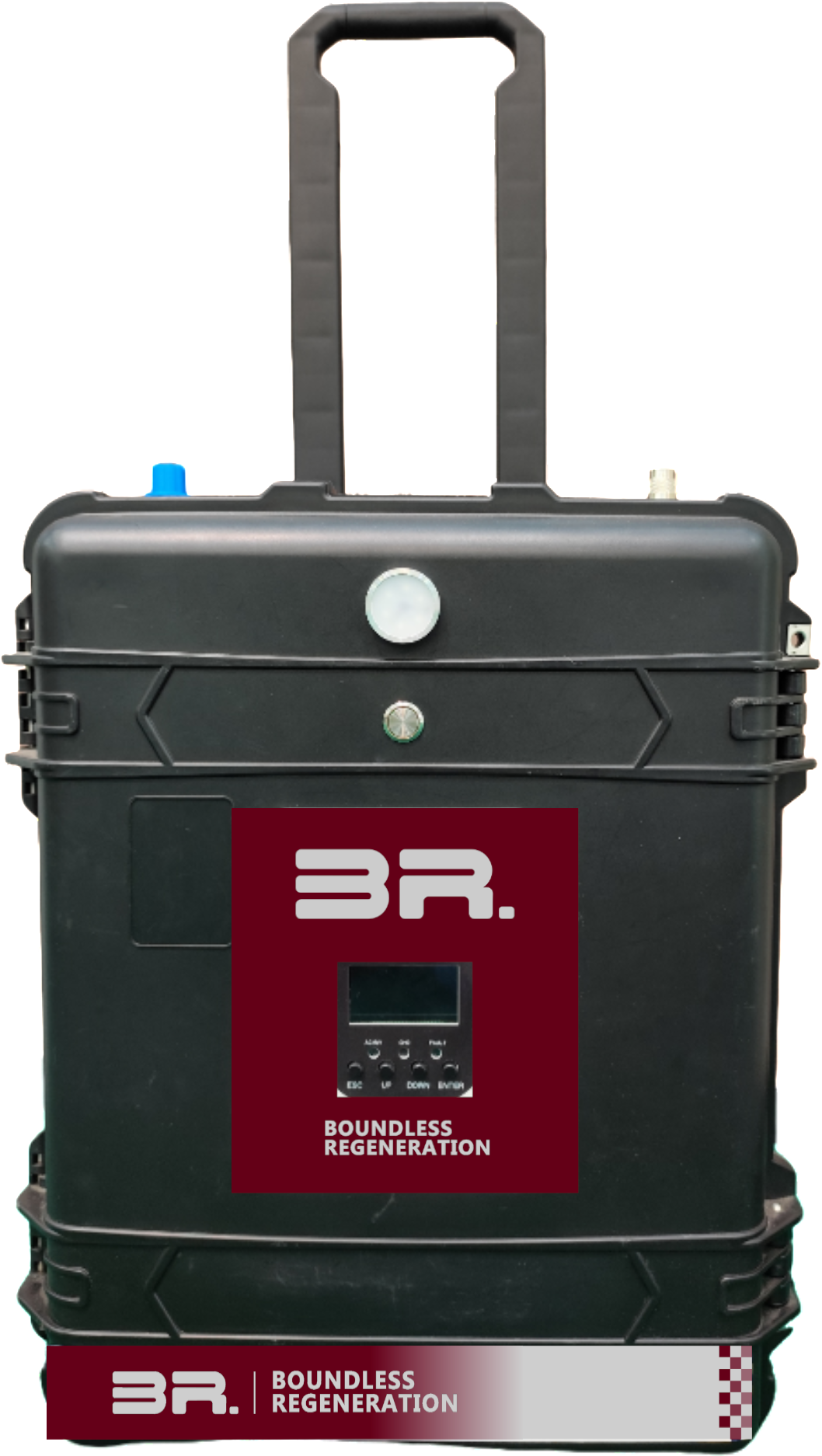

Travel Case Type Energy Storage
A portable energy storage system housed in a durable travel case, designed for easy transport and deployment in various locations.
- Nominal Voltage(V)48
- Battery Capacity(Ah)200
- Nominal Energy(kWh)9.6
- Charging Voltage(V)54.75
- Net Weight (Approx.)60
- Dimensions (mm)470*280*600
- Working Temperature(°C)charge: 0~45°C; discharge: -20~60°C
- CommunicationRS485/USB
- Cycle Life>3000
- IP GradeIP21

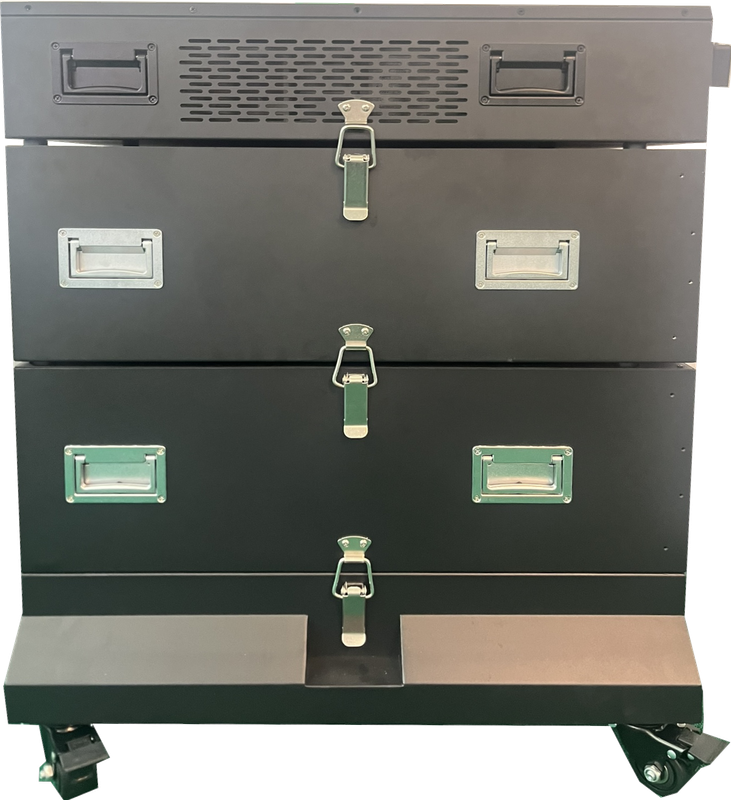

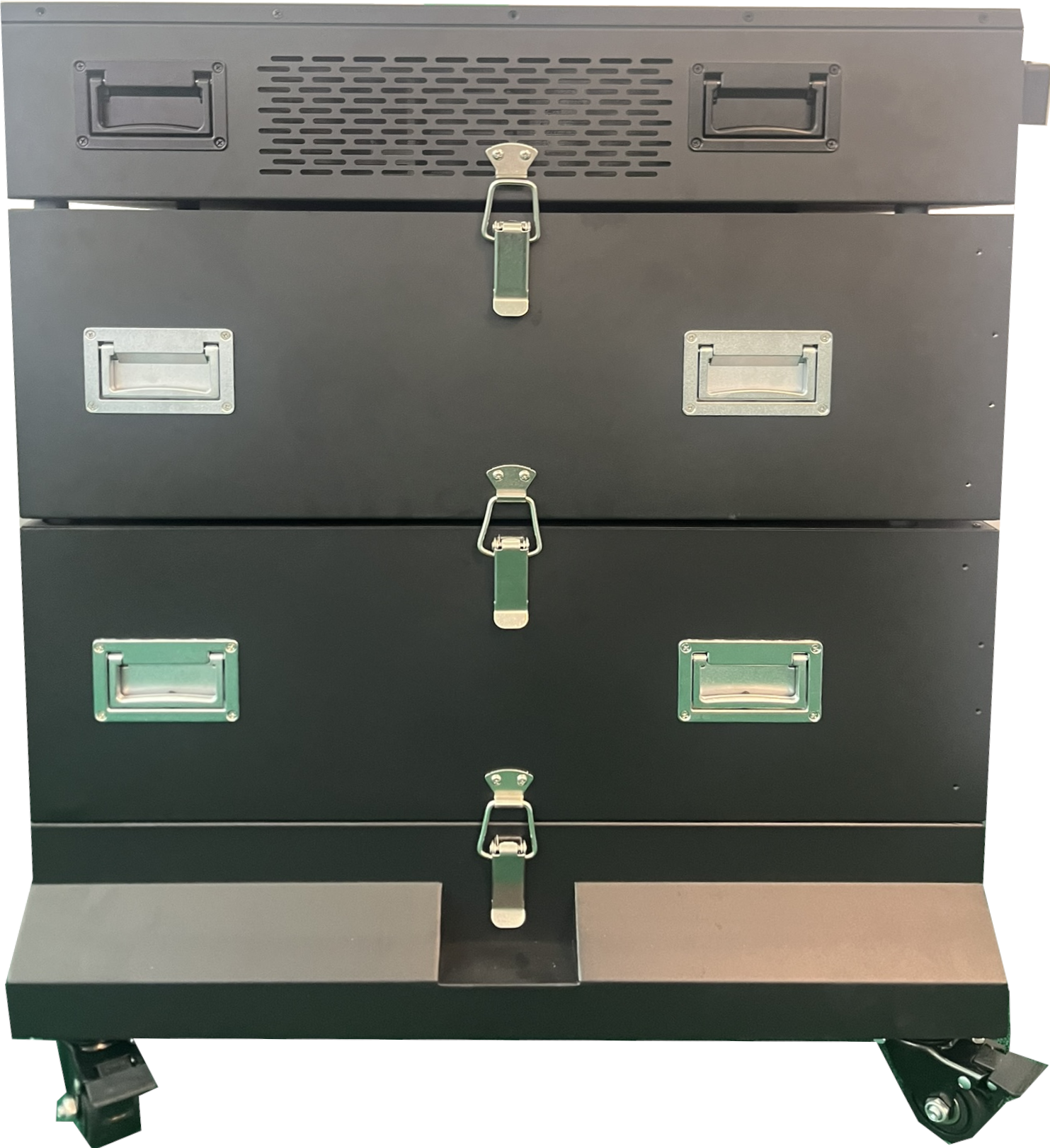

Rack-Mounted Home Energy Storage
A rack-mounted energy storage system is designed to fit into standard equipment racks, making it ideal for organized installations in homes or businesses.
- Nominal Voltage(V)51.2
- Battery Capacity(Ah)280/314
- Nominal Energy(kWh)14.33/16.07
- Charging Voltage(V)58.4
- Net Weight (Approx.)120
- Dimensions (mm)785*440*270
- Working Temperature(°C)charge: 0~45°C; discharge: -20~60°C
- CommunicationRS485/USB
- Cycle Life>3000
- IP GradeIP21
| Model | Nominal Voltage(V) | Battery Capacity(Ah) | Nominal Energy(kWh) | Charging Voltage(V) | Dimensions (mm) | Domestic Retail Price | Foreign Retail Reference Price |
|---|---|---|---|---|---|---|---|
| Stackable Home Energy Storage | 51.2V | 314Ah | 16.07kWh | 58.4V | 680*180*1460mm | 3814 RMB (Single Unit) | 533.5 USD (Single Unit) |
| Integrated Home Energy Storage | 51.2V | 100Ah | 5.12kWh | 58.4V | 490*230*770mm | 3814 RMB | 533 USD |
| Wall-Mounted Home Energy Storage | 51.2V | 102Ah | 5.12kWh | 58.4V | 430*150*530mm | 3814 RMB | 507 USD |
| Travel Case Type Energy Storage | 48V | 200Ah | 9.6kWh | 54.75V | 470*280*600mm | 7152 RMB | 1000 USD |
| Rack-Mounted Home Energy Storage | 51.2V | 280Ah | 14.33kWh | 58.4V | 785*440*270mm | 10675 RMB | 1493 USD |
