1792WhLiFePO₄
– Safer, longer lifespan, and more stable performance
portable power station · Pioneer-1000-LBW

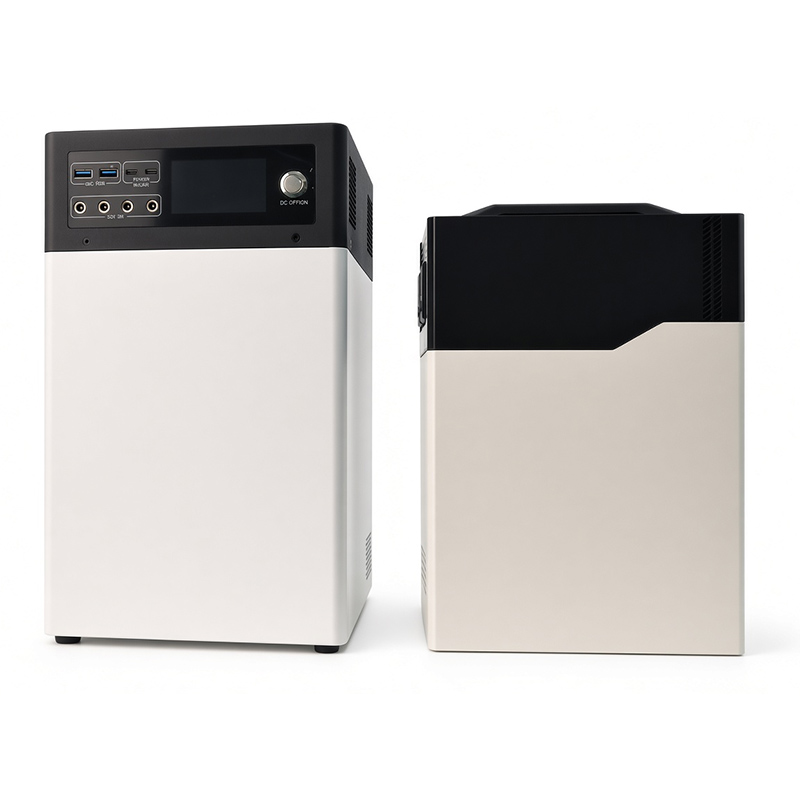

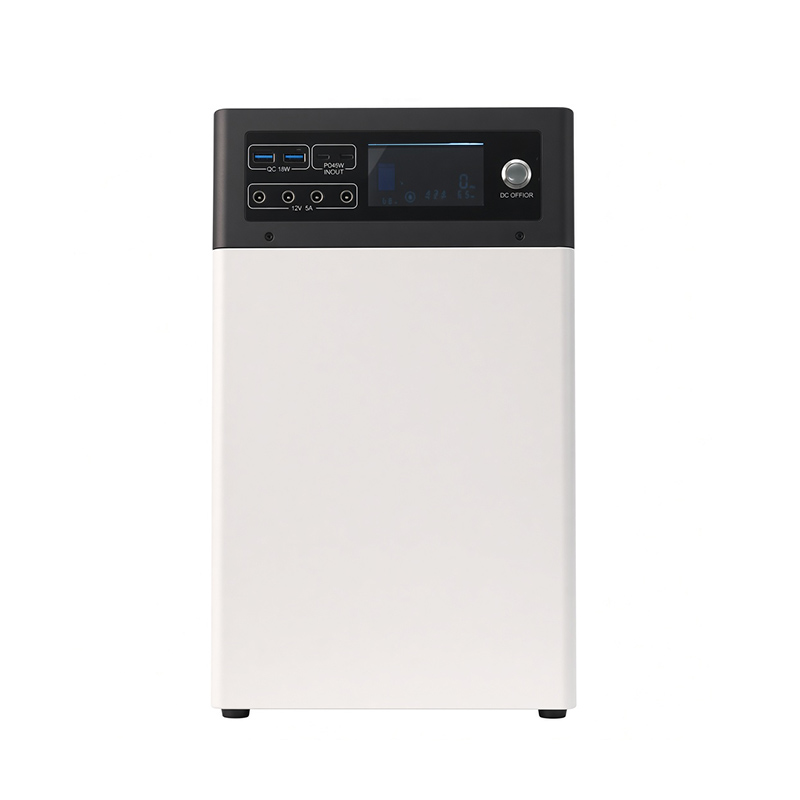

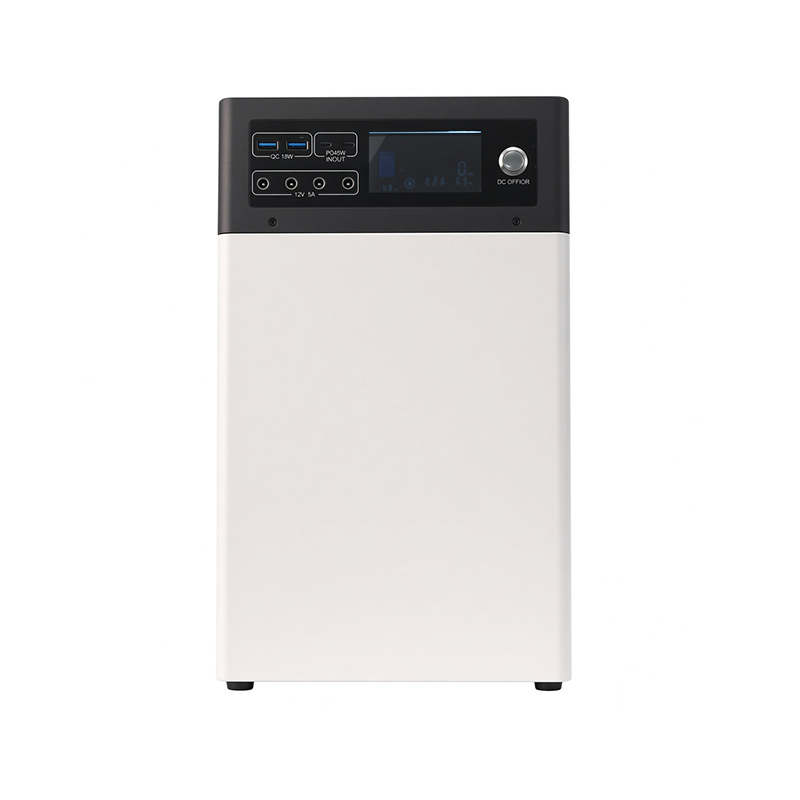

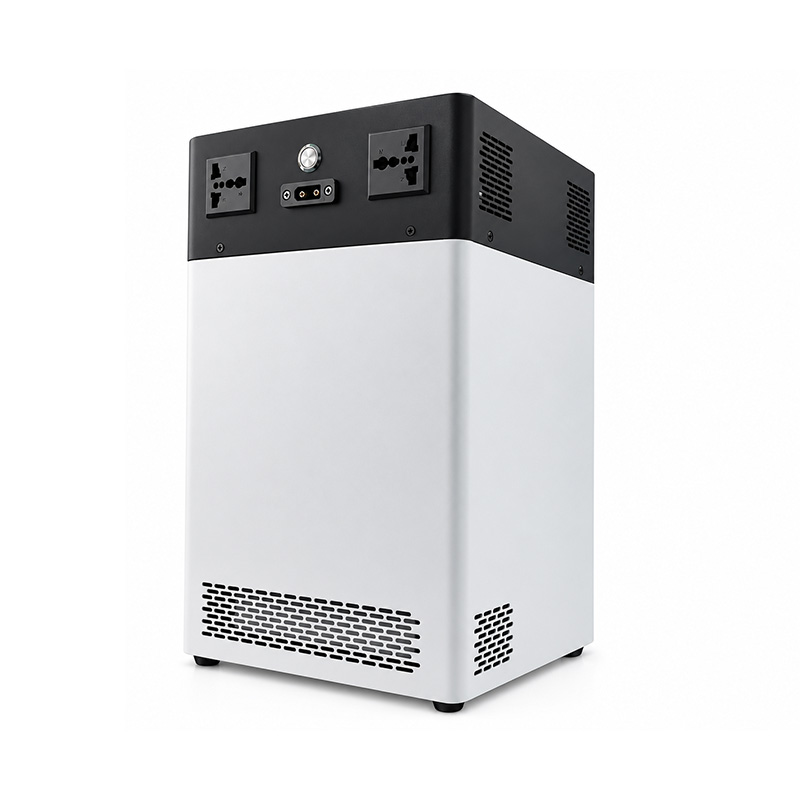

1000W Portable Inverter Power Station
_____ The Pioneer-1000-LBW is a high-capacity portable power station designed for reliable off-grid and backup power. Featuring a 1792Wh LiFePO₄ battery, 700W continuous pure sine wave output (1000W peak), and 450W MPPT solar input, it delivers clean, stable power for outdoor adventures, emergency backup, and professional use. With comprehensive safety protections, quiet operation, and a clear LCD display, it offers both performance and peace of mind in a portable package ________ Multiple output ports including dual AC, dual USB-C, dual USB-A and four DC ports, meeting all your power needs in one device.
Specifications Parameter | Pioneer-1000-LBW AC Output Output Mode Single-phase two-wire Rated Voltage 230Vac ±5V Rated Frequency 50Hz ±0.5% Total Harmonic Distortion (THD) <3% linear / <5% non-linear Power Factor ≥0.99 Full Load Power 700W; Peak: 1000W PV Input Nominal Photovoltaic Voltage 30V Voltage Range 12–60Vdc Maximum Current 30A Maximum Power (MPPT) 450W Battery Platform Voltage Single lithium iron phosphate cell (3.2V nominal rated) Voltage Range 2.85–3.65V Capacity 560Ah (1792Wh) Rated AC Output Power 700W Communication Output Constant Power 1000W MAX DC Output Power 12V / 5A Charge Time About 5–6h Protection Function Undervoltage/Overvoltage Protection Yes Short Circuit Protection Yes Over-temperature Protection Yes Environment Operating Temperature -20°C to 60°C Storage Temperature -20°C to 40°C Humidity 20%–95% RH, non-condensing Altitude ≤3000m; derating 1%/100m when >3000m Noise (dB) <40dB (at 1 meter) LCD Display Screen LCD display screen LCD Power Indicator LCD digital display Dimensions (mm) 220 × 225 × 365 mm Net Weight (kg) 18.5 kg Gross Weight (kg) 19.7 kg
Key Features
1000w output

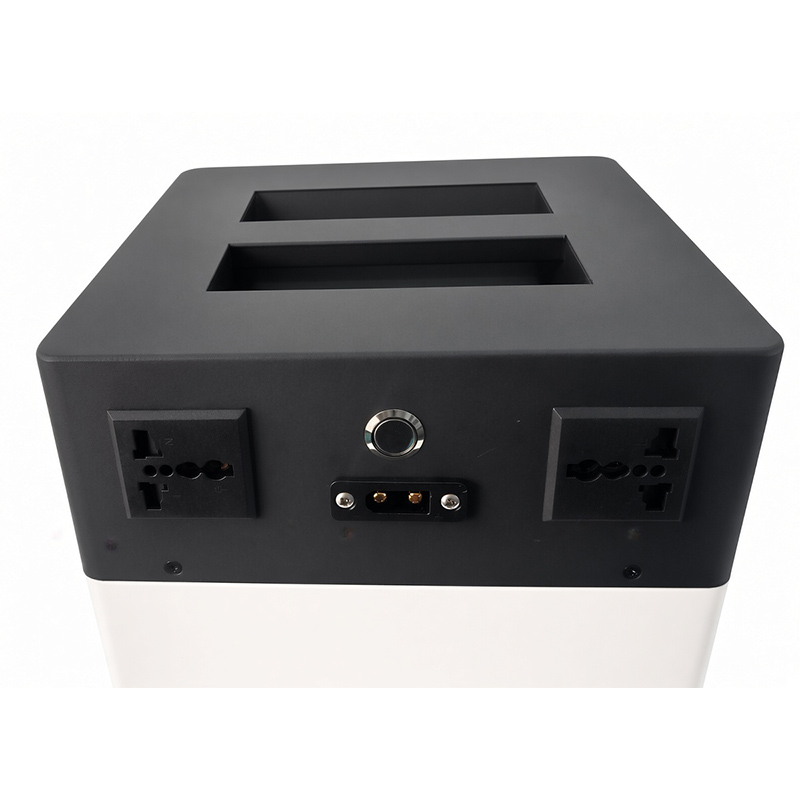

2 × AC Outlets
450W MPPT Solar Input
– Efficient solar charging
2 × USB-C (45W)
– Fast charge laptops and smartphones
2 × USB-A (18W)
– Charge multiple devices simultaneously
Ultra-Quiet Operation (<40dB)
– Ideal for camping and nighttime use
4 × DC Outputs (60W)
– Versatile power for DC appliances
Wide Operating Temperature (-20°C~60°C)
Reliable in extreme environments
Multiple Safety Protections
– Over-voltage, under-voltage, short-circuit, and over-temperature protection
Clear LED Power Indicators
– Real-time battery status at a glance
Technical Specifications
| Output Mode | Single-phase two-wire |
|---|---|
| Rated Voltage | 230Vac ±5V |
| Rated Frequency | 50Hz ±0.5% |
| Total Harmonic Distortion (THD | <3% (linear) / <5% (non-linear) |
| Power Factor | ≥0.99 |
| Full Load Power | 700W; Peak: 1000W |
| Nominal Photovoltaic Voltage | 30V |
| Maximum Current | 20A |
| Voltage Range | 2.85–3.65V |
| Maximum Power (MPPT) | 450W |
| Platform Voltage | ingle LiFePO₄ cell (3.2V rated) |
| Capacity | 280Ah (896Wh) |
| Charge TimeApproximately | 5–6 hours |
| Dimensions | 220 × 225 × 365 mm |
| Gross Weight | 19.7 kg |
| Operating Temperature | -20°C to 60°C |
| altitude | ≤3000m (derating 1% per 100m above 3000m) |
OEM Configuration & Packaging Review
Confirm the Configuration for Your Brand
Available product, branding, documentation and packaging options are confirmed for the selected model before sampling.
- Brand presentation review
- Product and packaging artwork review
- Target-market documentation review
- Available configuration confirmation
OEM Charging Product Sourcing
Planning Your 1000W Portable Inverter Power Station Project
Start with this model's specification, then review device fit, your brand brief and purchasing requirements. The following information helps our sales team narrow the configuration and prepare a comparable quotation.
Device and charging fit
Share the target devices, use case and connector or power requirements so the selected model can be reviewed for your project.
Branding and packaging
Share your logo, color direction, packaging format and manual languages. Model-specific customization options need confirmation before sampling.
Market and documentation
Identify the sales country, distribution channel and required documents. Confirm reports and supporting files for the chosen model and configuration before ordering.
Quantity and delivery plan
Provide an initial order quantity, reorder expectation and target arrival date. MOQ, pricing, samples and production timing are confirmed after project review.
Product Applications
Outdoor & Recreational Use
Camping & Glamping RV / Campervan / Van Life Hiking & Overlanding Fishing & Boating Outdoor Photography / Filming
Emergency & Backup Power
Home Emergency Backup Power Outage Protection Natural Disaster Preparedness Medical Equipment Backup (e.g. CPAP machines)
Off-Grid & Solar Energy
Off-Grid Living Solar Power Systems Remote Cabin / Tiny House Power Mobile Solar Charging Stations
Professional & Worksite Use
Construction Sites Outdoor Tools & Power Tools Field Work / Surveying Mobile Workshops
Events & Commercial Use
Outdoor Events & Parties Food Trucks / Mobile Vendors Pop-up Markets & Exhibitions Film & Video Production Sets
Travel & Mobile Lifestyle
Road Trips Digital Nomad Workstations Mobile Offices Yacht / Marine Applications
Downloads
Request the current datasheet and applicable documents for this model from our sales team.
Purchasing FAQ
Can this product be customized for our brand?
Yes. We support product color, logo, specifications, manuals and retail packaging customization.
What is the typical sample lead time?
Standard samples are normally prepared in 7–12 business days after specifications are confirmed.
Which certifications are available?
Certification depends on model and target market. Common files include CE, FCC, RoHS and UN38.3.
What information is needed to quote this model?
Share the model or SKU, estimated order quantity, sales country, charging and compatibility requirements, branding and packaging brief, and target delivery date. The sales team will review the available configuration and prepare a project quotation.
What should be confirmed before a bulk order?
Confirm the selected sample, final specification, branding and packaging artwork, and documents required for the target market. Minimum order quantity, sample cost, production schedule and trade terms are agreed after project review.
Compare Related Models
Review specifications across the same category before selecting a model for your project.
Prepare Your Model-Specific RFQ
Reference Pioneer-1000-LBW and share the quantity, sales market, branding and packaging requirements, and target delivery date so our sales team can confirm options and quote your project.
